Metal Building Insulation

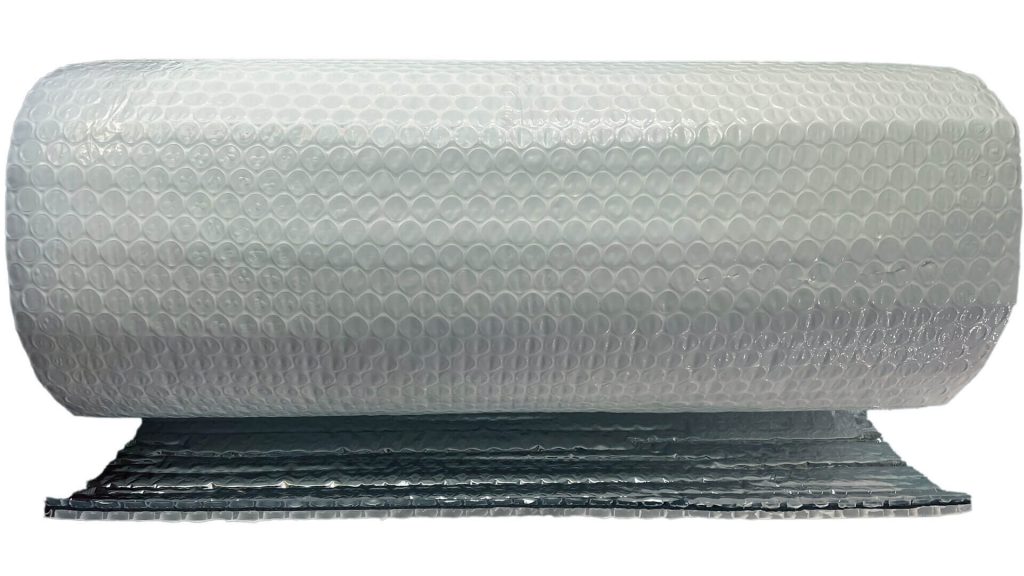

Triplex Foil/White-MBI R16
Polyshield Triplex® MBI R16 (heat flow down) is designed specifically for Metal Building under roof insulation applications. Our MBI R16 is over 1″ thick, featuring large double-bubble foil/foil/white material and a foam center. This stiffer material provides a much easier install, saving up to 70% of labor. The unique Triplex® MBI R16 has 95% reflectivity, matching all the other variations of our bubble insulation. The EPE foam center provides sound deadening properties, a higher R-Value, and delivers a higher level of thermal break for insulation efficiency.
Triplex® MBI R16 provides an R16 (heat flow down) value installed with 4″ of dead air space in between the roof and the metal of a building.
Triplex® MBI R18 provides an R18 (heat flow down) value installed with 6″ of dead air space in between the roof and the metal of a building.
Products
| Roll Size (sq. ft.) |
Product | Type | Width | Length | SKU | Weight (lbs) |
|---|---|---|---|---|---|---|
| 100 | TRIPLEX® MBI R16 Double Foil/Foil/Foam/White | TRIPLEX | 48" | 25' | TRILX-2XBF-FW-MPET | 37 |
VRR-PREMIUM
VRR-Plus is the most commonly installed insulation facing in metal buildings. Our Polyshield VRR-Premium facing front side is composed of a durable polypropylene insulation facing, with a metallized 95% reflective polyester (foil-like) backing on the back side. It is generally used in a typical metal building. Our Polyshield VRR-Premium metal building ceiling material is superior to other VRR-Plus products as it provides a higher reflectivity, a higher tensile strength, and a higher puncture resistance.
Products
| Roll Size | Facing | Fiberglass | Length | R-Value | Thickness | SKU |
|---|---|---|---|---|---|---|
| 360 sq. ft | 54" | 48" | 80' | R-8 | 2" | MBI-AG70-52-2 |
| 360 sq. ft | 54" | 48" | 80' | R-10 | 3" | MBI-AG70-52-3 |
| 360 sq. ft | 54" | 48" | 80' | R-13 | 4" | MBI-AG70-52-4 |
| 292 sq. ft | 54" | 48" | 80' | R-19 | 6" | MBI-AG70-52-6 |
| 440 sq. ft | 66" | 60" | 80' | R-8 | 2" | MBI-AG70-64-2 |
| 440 sq. ft | 66" | 60" | 80' | R-10 | 3" | MBI-AG70-64-3 |
| 440 sq. ft | 66" | 60" | 80' | R-13 | 4" | MBI-AG70-64-4 |
| 357.5 sq. ft | 66" | 60" | 65' | R-19 | 6" | MBI-AG70-64-6 |
