Agriculture Roof Wall

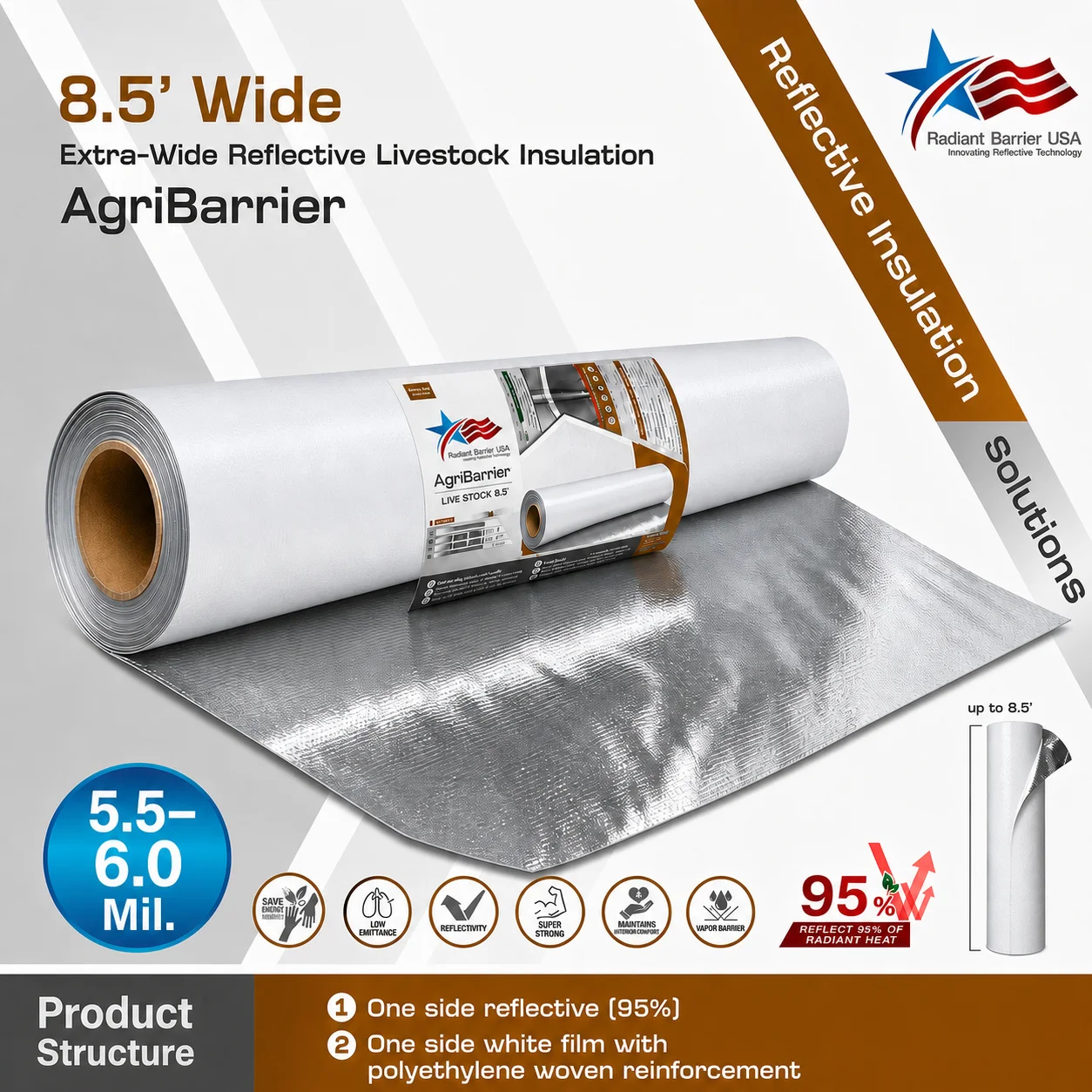

AgriBarrier (Agriculture)
A reflective insulation built for barns, poultry houses, and livestock facilities. The metallized foil side reflects 95% of radiant heat, keeping interior temperatures stable and reducing heat stress on animals. The white woven backing resists moisture, wipes clean, and holds up in demanding farm environments. At 8.5 feet wide, it covers large spans in fewer passes with fewer seams.
Features & Benefits
What makes it work
- Low Emittance (E=5%) metallized foil reflecting 95% of radiant heat
- Reduces heat stress and supports animal well-being and growth performance
- Assists with achieving Feed Conversion Ratio (FCR) objectives
- Reduces condensation under metal roofing, protecting structure and insulation from moisture damage
- Improves OTTV (Overall Thermal Transfer Value) for greater energy efficiency
- Smooth white polyethylene woven backing, washable and easy to clean
- All-weather, corrosion-free, moisture-resistant performance
- Extra-wide 8.5' format reduces installation time and labor costs across wide spans
- Tear-resistant woven structure with reinforced heavy-duty design
- Puncture-proof and durable for long service life in demanding rural environments
- Safe, fiber-free, non-toxic, and maintenance-free material
- Class A / Class 1 fire-rated for superior safety compliance
- Ideal for hybrid systems with foam or fiberglass insulation
Where it's used
Installation locations
Hogs or Poultry Livestock Buildings
RoofWall
Ordering
Available variants
| Name | SKU | Width | Length | Coverage | Weight | Mil |
|---|---|---|---|---|---|---|
| 8.5' x 125' | AG-102-3M-MR-P1000 | 8.5' | 125' | 1062 sq ft | 24 lbs | — |
| 4' x 250' | — | 4' | 250' | 1000 sq ft | 24 lbs | — |
| 4.5' x 222' | — | 4.5' | 222' | 1000 sq ft | 24 lbs | — |
| 6.3' x 158' | — | 6.3' | 158' | 1000 sq ft | 24 lbs | — |
Technical Data
Specifications
| Specification | Value |
|---|---|
| Standard Roll Size | 8.5' x 125' (1,062 ft²) |
| Standard Roll Weight | 24 lbs (+/- 5%) |
| Emittance (Metallized Foil Side) | 5% |
| Reflectivity | 95% |
| Permeability ASTM E96-2 Method B | >4 Perms |
| Pliability ASTM C-1224 | Pass |
| Flame Spread, Smoke Development, and Fire Rating | Class A / Class 1 |
Performance Data
Thermal performance
| Assembly | Heat-Flow Direction | Typical R-Value |
|---|---|---|
| Roof | Heat flow down | Up to R-10.5* |
| Wall | Heat flow horizontal | Up to R-5.5* |
- R-values represent estimated and potential heat resistance for our insulation in the proposed application.
- Actual performance depends on air film size, temperature, surface condition, and airflow direction (up, down, or horizontal).
- Calculations are based on RIMA, AIRAH, ASHRAE, and ISO 6946 standards, following ASTM procedures for air film resistance.
- When two air spaces are used, values assume still air conditions in both spaces.
- For a full R-value assessment, please contact us directly or your nearest dealer.
How it stacks up
Compare with similar products

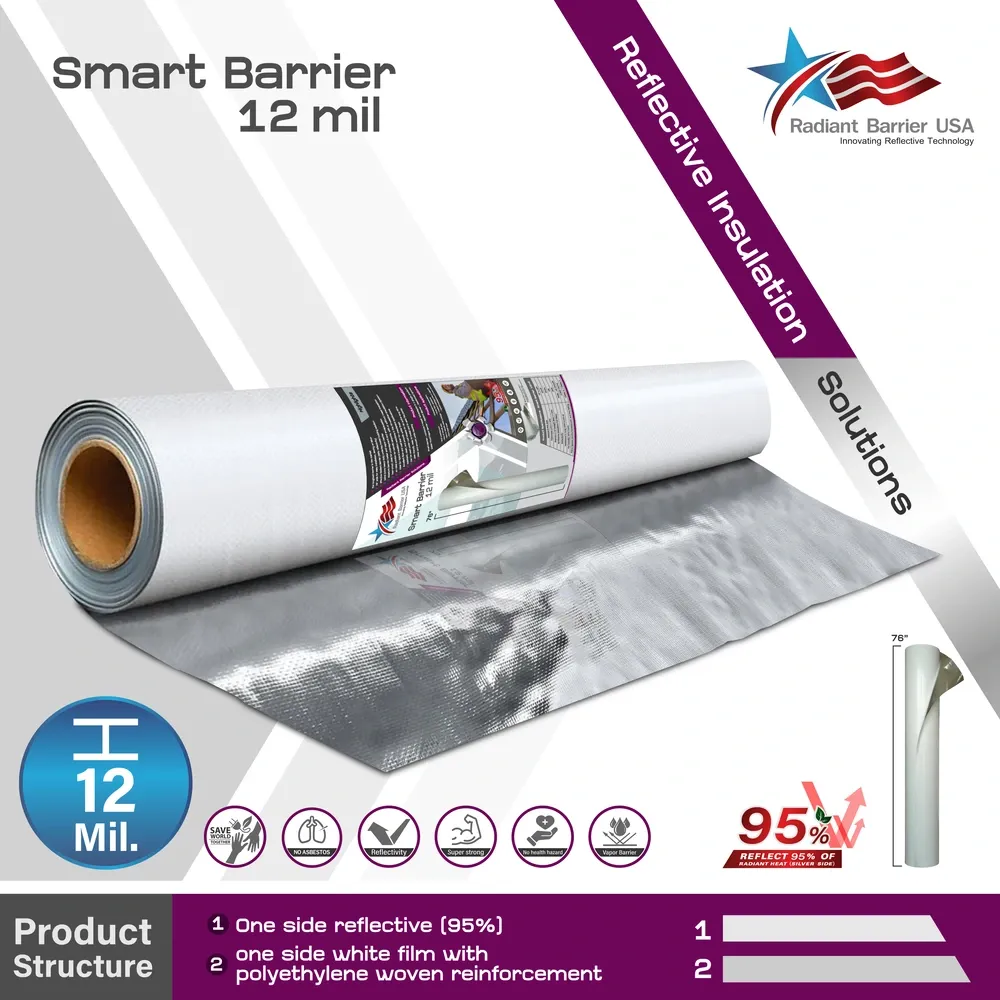

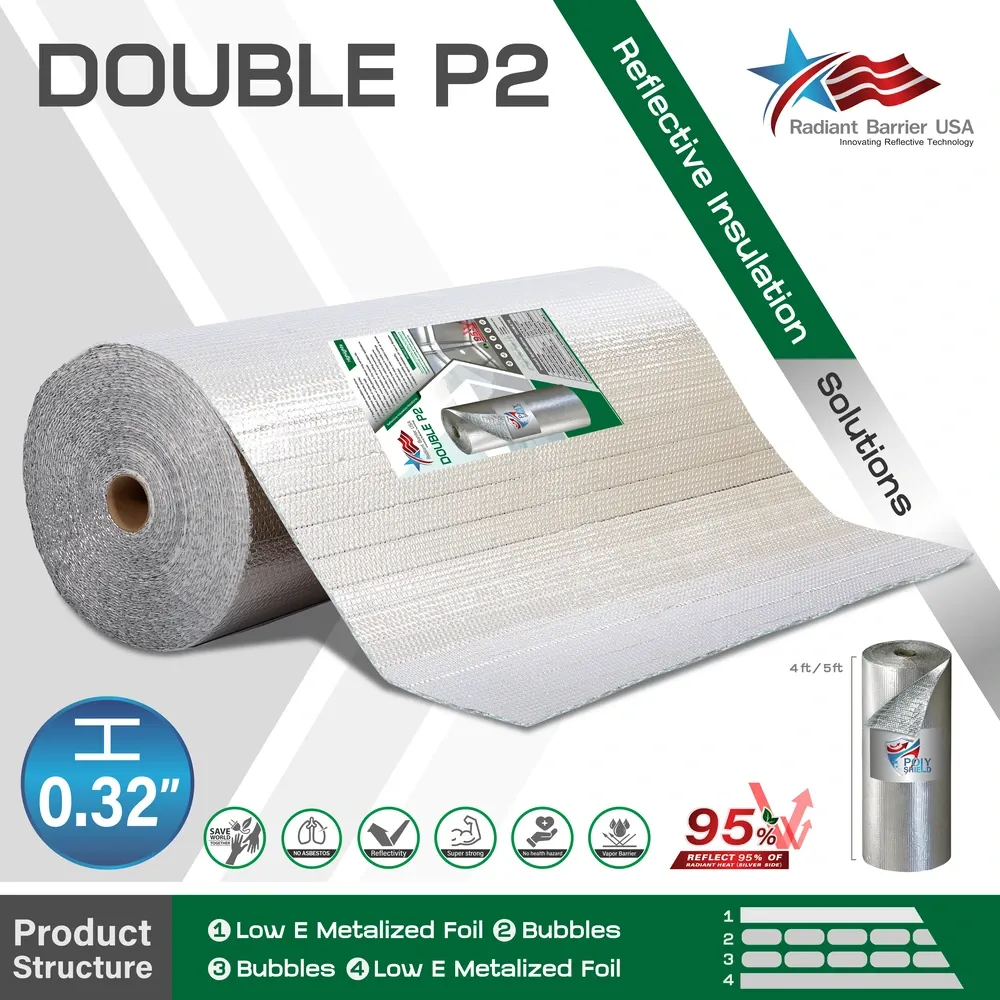

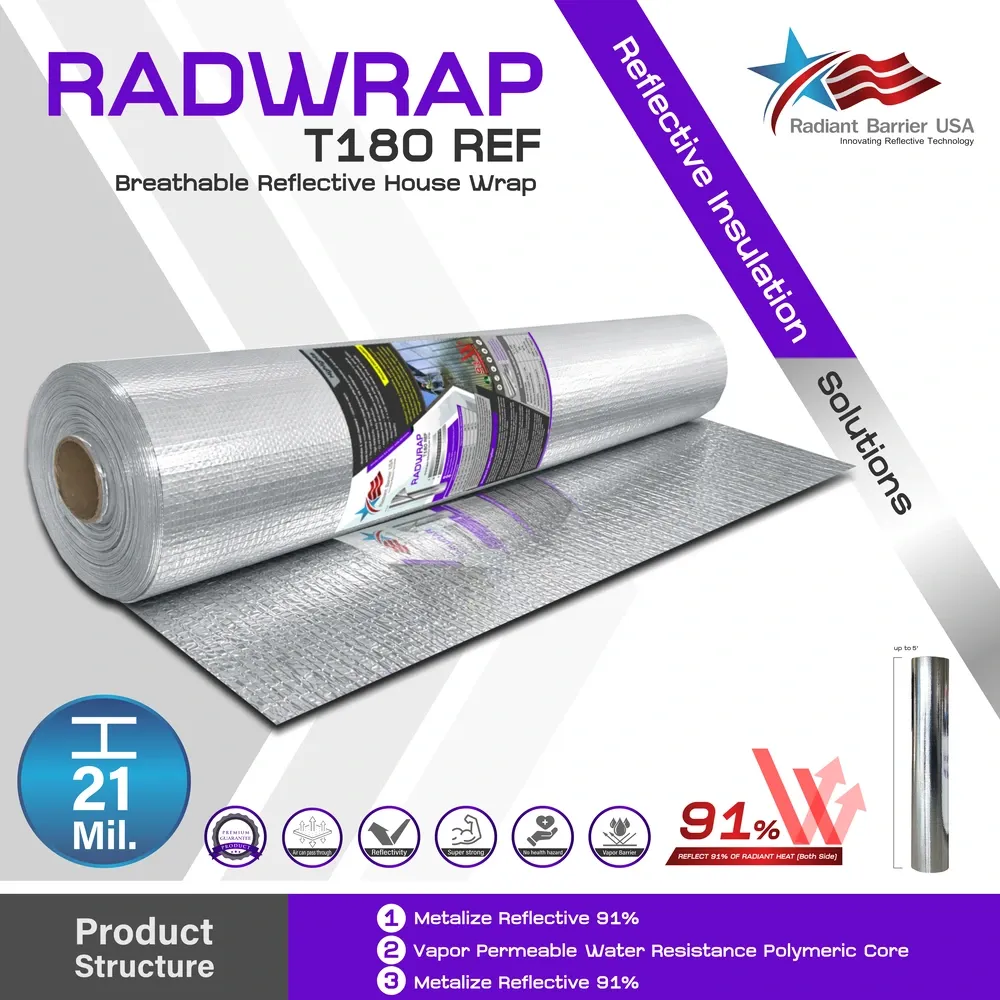

| Specification | AgriBarrier (Agriculture) (this product) This product | Double P2 Double Bubble Double Foil | RadWrap T180 REF | Smart Barrier |
|---|---|---|---|---|
R-Value Thermal resistance. Higher is better. | R-5.5 to R-10.5 | R-5 to R-22.5 | R-20.71 to R-25.71 | R-5.54 to R-12.46 |
Applications |
|
|
|
|
Use Case | Agriculture | ResidentialCommercialAgriculture | ResidentialCommercialAgriculture | ResidentialCommercialAgriculture |
| Get a Quote | View product | View product | View product |
